Indicator Name: ClusterDelta Infusion

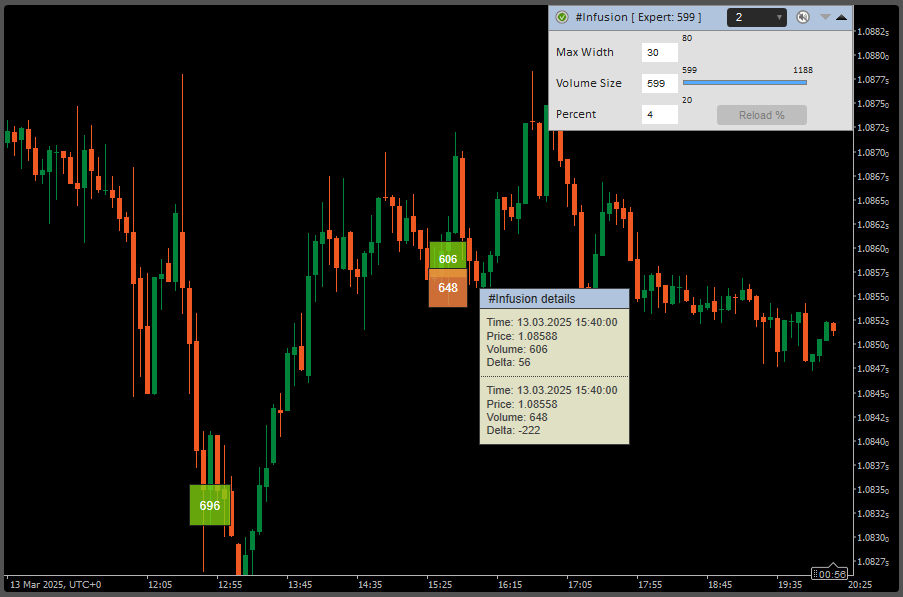

The value of the indicator is that it can find large accumulations of volume on the current chart. For each instrument and each timeframe there is a certain volume size, after which the volume becomes "large". To find this value, indicator analyses deep history, and based on result a predictive value is formed for each next day.
The Infusion indicator is not only an indicator, but already a kind of self-adapting analytical module for searching for large volumes.
Big volumes are the stimulators of the market, the market is pushed by volumes and where they "appear" the market reacts in its own way. Big volume can push the market as well as they can stop it. Also, the interesting fact about this indicator is that in addition to analyzing the large volumes, it can indicate extreme delta values, which show an imbalance between buyers and sellers in the market.

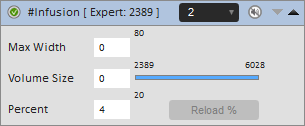

DESCRIPTION OF THE INFUSION INDICATOR PANEL
The Title of the Infusion panel contains the "Authorizer" icon, the indicator name, the number of days to load to load and display, where the value "None" removes Infusion data from the chart, an Alert icon, an icon (arrow down) to open the Advanced Panel and the next icon (arrow up) to close the current Infusion GUI panel. The hot key 'Z' hides this panel, and hot key 'X' shows it again.
Advanced Panel has the options for the Infusion indicator.
Max Width determines the object size. 0 is for automatic value. The Infusion information is shown If the object size is enough big to fit this text.
Volume Size is the minimum value of the volume that is required to show it as an Infusion object.
Percent is a percentage of the daily volume that would be used to calculate Infusion minimum volume size for the Expert mode (There is a Simple mode also that just uses the manual value of the minimum Volume Size).

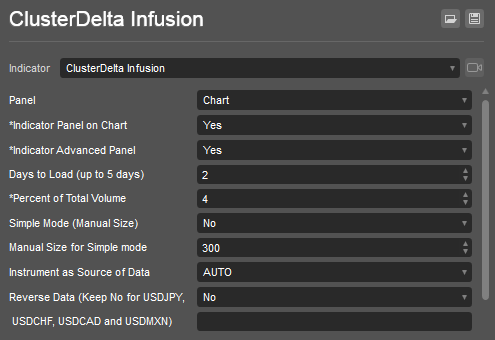

CLUSTERDELTA INFUSION INPUTS DESCRIPTION
Common Settings describes the basic parameters of the indicator. The standard behavior of cTrader when changing values of any settings is to immediately reload indicators, which requires remote access to ClusterDelta servers to reload data, so it is highly recommended to change all settings the first time you attach an indicator to a chart. Options starting with '*' (asterisk) cannot be changed after the indicator is attached, as they are part of the GUI panel. Use the GUI panel to change the options allowed there, but in case you need to change options in the cTrader indicator settings panel, it will be easy to remove the indicator and reattach it with new settings changes./p>
Panel is the indicator location. The current indicator works with the "Chart" value only
Indicator Panel on Chart shows or hides the Infusion Panel on start
Indicator Advanced Panel shows or hides the Advanced Panel on start
Days To Load (up to 5 days) is the number of the days to load in history. To not overload server side do not use the big values. To get more data in history use the option "Build Back (Days to Skip)" in the Advanced settings section.
Percent To Load Volume is a percentage of the daily volume that would be used to calculate Infusion minimum volume size for the Expert mode. The infusion minimum volume size is averaged value of the traded volumes during last two weeks. The volumes counts as the amount of the volume by each price / time on defined timeframe. This is a proprietary algorithm ClusterDelta that allows you to find the size of a volume that is marked as large on the current session using the previous session's data. The available range is 1 - 20.
Simple Mode is a option to switch from Expert Mode to Simple by using a manual value .
Manual Size for Simple Mode is a manual value of the minimum volume size to create the Infusion objects in Simple Mode.
Instrument as Source of Data - select a futures from the dropdown list as the source for data. Value AUTO causes automatic detection of the instrument using the cTrader ticker.
Reverse Data is an option for reverse the indicator data for reversed currency pairs except those that have name "USDJPY", "USDCAD", "USDCHF", "USDMXN". This option was added for compatibility, but in 99.9% of cTrader cases leave it "No".

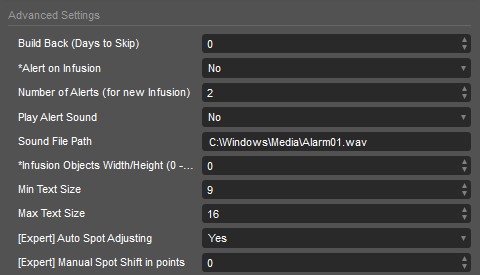

Advanced Settings
Build Back (Days to Skip) is the option to work with history data. It determines the number of days to skip from the current date and then load the required historical data using the "Days to Load" setting from the Common Settings.
Alert on Infusion initiates the Alert event when the Infusion just appeared on the current bar.
Number of alerts is an option for how many times to initiate a new infusion alert event.
Play Alert Sound is an option for the sound file to be played when an alert event is triggered.
Sound File Path must be an existing path to a sound file to play when an alert event is triggered. It must be filled by user in a format like the field below: "C:\Windows\Media\Alarm01.wav"
Infusion Object Width/Height is the setting for "Max Width" option in indicator panel. This value is the maximum size for the Infusion object with a maximum volume (Ask+Bid). 0 is for automatic resizing.
Min text size is the smallest text size that will be used to display the Infusion value when the Infusion Object width/height will be large enough to fit the Infusion value inside.
Max text size is the maximum text size that will be used to display the Infusion value.
[Expert] Auto Spot Adjusting is an option that allows you to adjust indicator data to the spot chart using the latest highs and lows of the current trading session. The difference that is automatically calculated using this option may vary from trading session to trading session, so this may result in incorrect alignment of indicator data for different trading sessions.
[Expert] Manual Spot Shift in points sets the manual value to be used to adjust indicator data to the spot chart. Use the middle mouse button to measure the distance in points to use this value in this option.

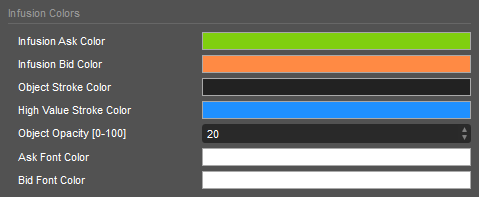

Infusion Colors
Infusion Ask Color is the color of the Infusion object with a positive Delta
Infusion Bid Color is the color of the Infusion object with a negative Delta.
Object Stroke Color is the border color around the Infusion object.
High Value Stroke Color is the additional border color around the Infusion object with large amount of the volume.
Ask Font Color is the color of the text for Ask Infusion.
Bid Font Color is the color of the text for Bid Infusion.

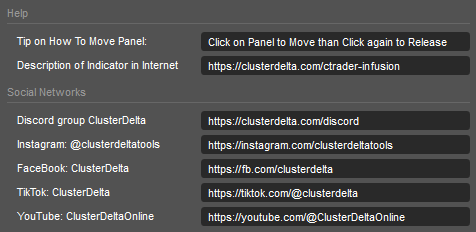

Tips and Social Networks
Help section is the small tip on how to move the indicator panel and the URL on where to get the full documentation about indicator
Social Networks are the links to join our Discord and follow us in the Instagram and other social networks
