Indicator Name: ClusterDelta #AskBid

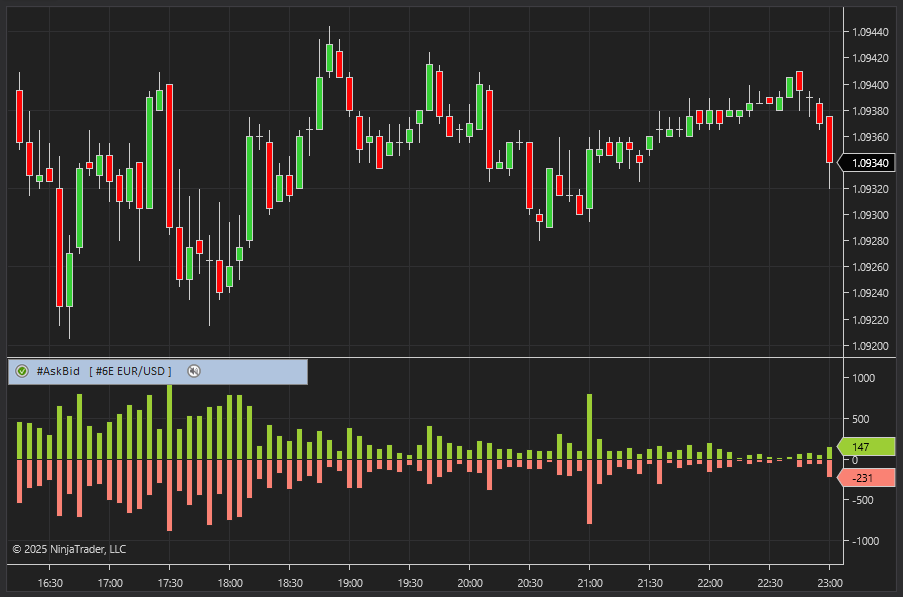

The AskBid indicator shows the absolute values of volumes executed at the Ask prices and volumes executed at the Bid prices. Please note that volume and delta are calculated based on volumes executed at Ask and Bid prices.
VOLUME = ASK + BID
DELTA = ASK - BID
The layers contain Ask : Bid pair values, which can be directed in opposite directions.

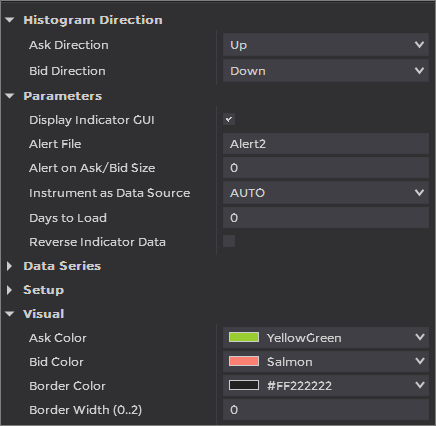

CLUSTERDELTA ASK BID PARAMETERS DESCRIPTION
Ask Direction is a direction of the histogram of the Ask values (up or down) from zero position.
Bid Direction is a direction of the histogram of the Bid values (up or down) from zero position.

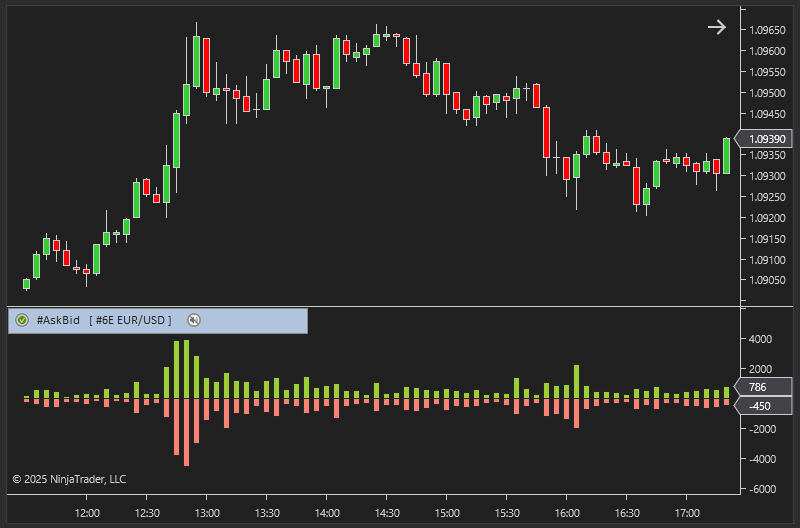

Display Indicator GUI is a small graphical panel containing current access status (click to open the Authorizer), name of the indicator, ticker name of the data source and the alert icon
Alert File is an option for the sound file to be played when an alert event is triggered. The files located at the NinjaTrader_Install_Directory\Sounds directory
Alert on Ask/Bid Size is the default Ask and Bid alert level. The non zero value automatically enables the Alert Mode.
Instrument as Data Source - select a futures from the dropdown list as the source for data. Value AUTO causes automatic detection of the instrument using the NinjaTrader ticker.
Days To Load is the number of the days to load in history. To not overload server side do not use the big values. The "0" value uses the entire period that is loaded by NinjaTrader. Use the "Data Series" NT option (Ctrl+F) to change it.
Reverse Indicator Data is an option for reverse the Ask/Bid histogram for reversed currency pairs except those that have name "USDJPY", "USDCAD", "USDCHF", "USDMXN". This option was added for compatibility, but in 99.9% of NinjaTrader keep it turned off.
Ask Color is the color of the Ask histogram objects.
Bid Color is the color of the Bid histogram objects.
Border Color is the color of the border around histogram objects.
Border Width is the thickness of the border around histogram objects.
Click the Alert icon to enable/disable alerts. When enabled, two lines appear as the alert levels. The lines can be moved by the user to change the alert level.
